The Simple Science of Staying Chilled

What "How Your Air Conditioner Works" Actually Means — and Why It Matters

How your air conditioner works comes down to one simple idea: it does not create cold air. Instead, it pulls heat out of your home and moves it outside, leaving cooler, drier air behind.

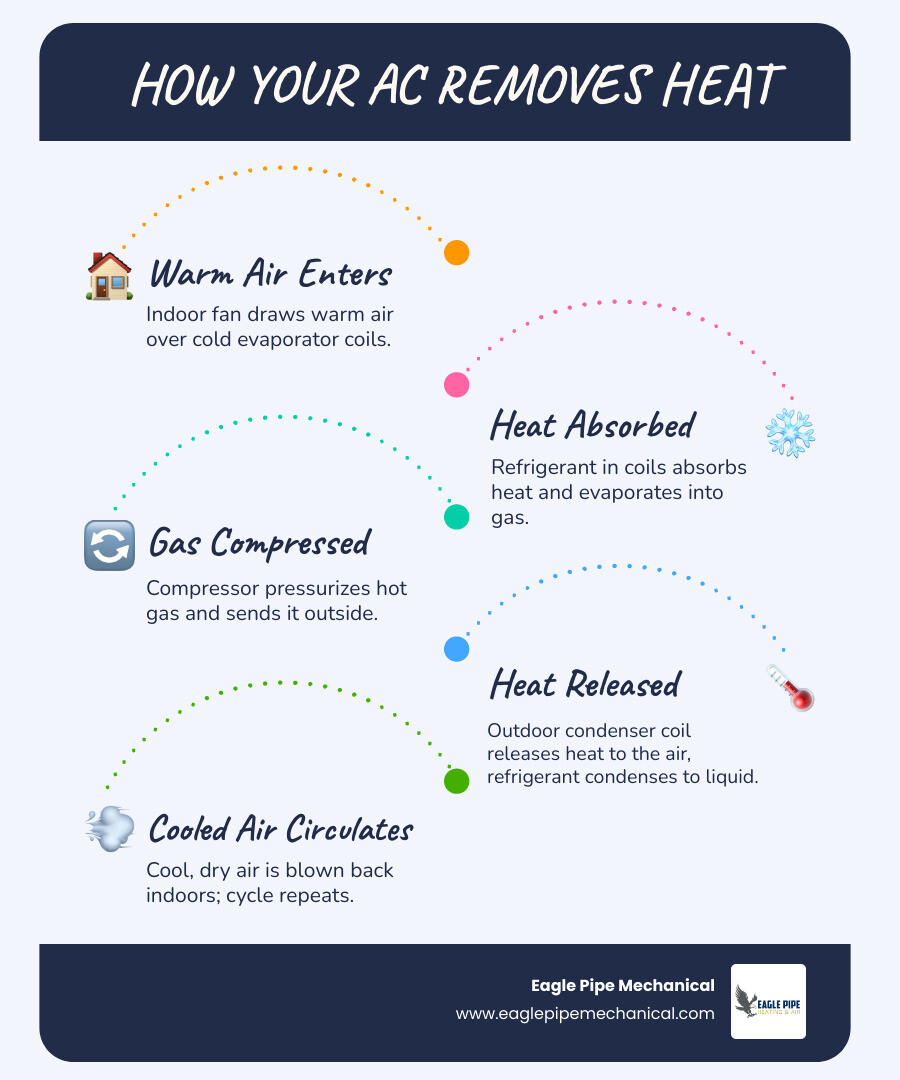

Here is a quick breakdown:

1. Warm indoor air passes over cold evaporator coils inside your home.
2. Refrigerant inside those coils absorbs the heat and turns from liquid into gas.
3. The compressor pushes that gas to the outdoor unit.
4. The condenser coil releases the heat outside, and the refrigerant turns back into liquid.
5. The cooled air is circulated back into your home through a fan or ductwork.
6. Moisture from the air condenses on the coils and drains away, lowering humidity.
7. The cycle repeats until your thermostat's target temperature is reached.

That loop runs continuously on hot days, quietly moving heat from inside your home to the outdoors — over and over again.

This process has not changed much since July 17, 1902, when Willis Haviland Carrier designed the first modern air conditioning system. Today's units are far more efficient, but the core physics remains the same: exploit the fact that a liquid absorbs heat when it evaporates into a gas, and release that heat somewhere else.

For homeowners in Kitsap and Jefferson County, understanding this basic principle makes it easier to spot problems early, make smarter maintenance decisions, and choose the right system for your home — whether that is a central split system, a packaged unit, or a ductless mini-split.

The Core Principles of How Your Air Conditioner Works

To truly grasp the magic of modern cooling, we have to look at the basics of air conditioning systems. At its heart, air conditioning is a heat transfer process. It is governed by the laws of thermodynamics, specifically the principle that heat naturally moves from a warmer object to a cooler one.

When we talk about How Air Conditioners Work: Air-Conditioning Basics | HowStuffWorks, we are looking at "phase conversion." This is the scientific term for when a substance changes from a liquid to a gas. Think about how you feel chilled when you step out of a swimming pool on a breezy day. That is evaporative cooling—the water on your skin absorbs your body heat to turn into vapor. Your AC uses a specialized chemical called refrigerant to do this on a much larger, more controlled scale.

The Misconception of "Creating Cold"

It is a common myth that an AC unit "blows coldness" into a room the same way a heater blows warmth. In reality, "cold" is simply the absence of heat. When we turn on our units in Port Orchard or Bremerton, we are initiating a mechanical "theft" of heat energy. The system recirculates the air already inside your home, stripping away the thermal energy until the air reaches a state of thermal equilibrium with the setting on your thermostat.

The Role of Humidity in Comfort

Temperature is only half the battle. As many of our neighbors in Gig Harbor know, a humid 75-degree day can feel much worse than a dry 85-degree day. As Jennifer Fletcher, an industry expert, famously noted, "The drier the air is, the more comfortable you feel — even at higher temperatures."

Your air conditioner is also a powerful dehumidifier. An AC designed for an occupied space will typically aim for a 30% to 60% relative humidity. By removing excess moisture, the system allows your skin’s natural cooling process (sweating) to work more effectively, making the room feel significantly cooler than the thermometer might suggest.

The Refrigeration Cycle: A Step-by-Step Journey

The magic happens within a closed-loop system of copper tubing. This loop connects the indoor and outdoor portions of your system, allowing the refrigerant to travel back and forth. To understand How Do Air Conditioners Work? | Air Conditioning System | AC, we need to follow the refrigerant through its four main stages.

Step 1: Evaporation and Heat Absorption

The journey begins at the indoor evaporator coil. Cold, liquid refrigerant enters these coils. As the blower fan pulls warm air from your living room or bedroom over these coils, the refrigerant "soaks up" the heat. Because the refrigerant has a very low boiling point, this heat causes it to evaporate into a gaseous state. Now, the heat from your home is officially trapped inside the gas.

Step 2: Compression and Heat Concentration

The warm gas travels through the copper lines to the outdoor unit. Here, it meets the compressor—the "heart" of the system. The compressor squeezes the gas, which causes its pressure and temperature to spike significantly. It becomes much hotter than the outdoor air in Kingston or Poulsbo, which is essential for the next step.

Step 3: Condensation and Heat Rejection

The hot, high-pressure gas enters the condenser coil. A large outdoor fan blows air across these coils. Because the gas is hotter than the outside air, the heat naturally transfers from the coils to the atmosphere. As it loses this heat, the refrigerant cools down and converts back into a high-pressure liquid.

Step 4: Expansion and Cooling

Before the refrigerant can go back inside to pick up more heat, it passes through an expansion valve. This component acts like a nozzle on a spray bottle. It quickly drops the pressure of the liquid refrigerant, causing its temperature to plunge. Now icy cold again, the refrigerant returns to the evaporator coil to start the cycle all over again.

Essential Components: The Hardware Behind the Chill

Understanding how your air conditioner works requires a quick look at the "Big Three" components: the compressor, the coils, and the blower. These work in tandem with your air handler and ductwork to ensure every corner of your home stays comfortable. To keep these parts running smoothly, following an essential guide to ac maintenance is vital.

The Role of Refrigerant in How Your Air Conditioner Works

Refrigerant is the lifeblood of the system. In the past, systems used compounds that were harmful to the environment. However, thanks to the Montreal Protocol and international environmental agreements, modern refrigerants are designed to be much safer for the ozone layer.

It is important to remember that refrigerant is not "used up" like gasoline in a car. It stays in a closed loop. If your system is low on refrigerant, it almost always means you have a leak. Knowing the ac refrigerant leak signs—such as hissing sounds or ice on the coils—can save you from a major system failure.

Evaporator Coils vs. Condenser Coils

• Evaporator Coils (Indoor): These are usually made of copper tubing with thin aluminum fins. Their job is heat absorption. Because they get so cold, they also collect moisture from the air, which drips into a drain pan.
• Condenser Coils (Outdoor): These are also copper and aluminum but are built to withstand the elements. Their job is heat rejection. They need plenty of airflow to dump that heat effectively, which is why we always recommend keeping plants and debris at least two feet away.

Different Ways to Cool: Split, Packaged, and Ductless Systems

Not every home in the Pacific Northwest is built the same. A historic home in Port Townsend has different needs than a new build in Silverdale.

Many of our clients are discovering ductless mini-split systems advantages, especially for homes that weren't originally built with central air.

Understanding Ductless Mini-Splits in How Your Air Conditioner Works

Ductless systems are a game-changer for energy savings. Because they don't lose energy through leaky ductwork, ductless mini-splits boost efficiency significantly. They use variable-speed compressors that can slow down or speed up based on the exact needs of the room, rather than just blasting on and off. This can be up to 58% more efficient than a traditional fixed-speed system.

Packaged Systems and Regional Preferences

While split systems (where the "cold" side is inside and the "hot" side is outside) are the standard in North America, packaged systems are a great space-saving solution. In these units, the compressor, coils, and fan are all housed in one footprint, usually installed on the roof or a concrete slab outside.

Maintaining Your System for Optimal Performance

Even the best-engineered system needs a little love. As of 2022, air conditioning accounted for about 7% of global electricity use. By maintaining your system, you aren't just staying cool; you're reducing your environmental footprint.

Efficiency Factors and Smart Technology

Efficiency is measured by the SEER (Seasonal Energy Efficiency Ratio) rating. Think of it like MPG for your car. Modern units can reach SEER ratings as high as 26, and ENERGY STAR certified units are generally 15% more efficient than standard models.

One of the easiest ways to save is by using a smart thermostat. It is actually more cost-effective to leave the air conditioner on but adjust the temperature about 7-10 degrees higher when you aren’t home, rather than turning it off entirely. This prevents the "heat soak" effect where your walls and furniture get so warm that the AC has to work double-time to catch up later.

Identifying signs you need immediate ac repair—like short cycling or strange grinding noises—is the first step to avoiding a total breakdown. You should trust experts for ac maintenance to handle the technical checks that keep these ratings high.

Seasonal Readiness in the Pacific Northwest

In coastal areas like Port Ludlow, Hansville, or Suquamish, salt air corrosion can be a real threat to your outdoor condenser. We recommend a thorough spring cleaning every year. When you prepare your ac for spring, you should clear away any fallen pine needles or leaves that have accumulated during our windy winters.

Frequently Asked Questions about AC Operation

Does an air conditioner bring in outside air?

No. This is one of the biggest myths about how your air conditioner works. Your AC recirculates the air already inside your home. It pulls air through a filter, cools it, and sends it back. The outdoor unit only moves heat, not air, between the inside and outside. This is why high-quality air filters are so important for your indoor air quality!

How does an AC dehumidify the air?

It happens through condensation. Think of a cold can of soda on a hot July afternoon in Belfair. Water droplets form on the outside of the can because the cold surface causes the moisture in the air to turn back into liquid. Your evaporator coil does the exact same thing. That moisture is collected in a drain pan and sent outside through a condensate line.

Is it cheaper to leave the AC on all day?

Generally, yes—if you use "setback" temperatures. If you turn the AC off completely, the temperature inside your home can rise to 80 or 90 degrees. Your AC will then have to run for hours at maximum capacity to cool the air, the furniture, and the walls. Adjusting the thermostat up by 7-10 degrees while you are at work is the "sweet spot" for energy savings.
