How to Troubleshoot AC Circuit Breaker Tripping in 5 Simple Steps

What an AC Circuit Breaker Keeps Tripping What It Means for Your Home

ac circuit breaker keeps tripping what it means is straightforward: your home's electrical system is detecting more current than the circuit can safely carry, and it's shutting down to protect your wiring, your equipment, and your family. This is not a glitch — it's the breaker doing exactly what it was designed to do.

If your AC breaker keeps tripping, here are the most common reasons:

• Dirty air filter — restricts airflow, forcing the blower motor to draw more amps than the circuit allows
• Dirty condenser coils — trap heat and cause the compressor to overwork and pull excess current
• Failing capacitor — causes the compressor or fan motor to struggle on startup, spiking amp draw
• Grounded or hard-starting compressor — creates a direct electrical fault that trips the breaker instantly
• Loose or damaged wiring — generates heat and resistance that overwhelm the circuit
• Overloaded or shared circuit — too many loads competing on one breaker
• Worn-out breaker — no longer holds its rated amperage reliably

Most homeowners in Kitsap and Jefferson County notice the problem on the hottest days of the year, when the AC is running hardest and every weakness in the system gets pushed to its limit. One reset might seem to fix it — but if the breaker trips again, that's a signal you can't ignore.

The sections below walk you through a clear, five-step process to find the cause safely and decide when to call a professional.

Understanding the AC Circuit Breaker Keeps Tripping What It Means

To understand why your air conditioner is suddenly shutting down your power, it helps to understand what the circuit breaker actually does. Think of your breaker panel as the traffic cop of your home’s electrical system. Its primary job is to monitor the flow of electrical current (measured in amperes, or amps) through your walls.

A standard household outlet runs on a single-pole breaker (usually 15 or 20 amps at 120 volts). However, central air conditioning units are heavy-duty appliances. They require far more power, which is why they are wired to a dedicated double-pole breaker in your electrical panel. This double-pole setup combines two poles to deliver 240 volts of electricity, allowing the system to power both the outdoor condenser unit (including the compressor and fan) and the indoor blower motor.

When the electrical current flowing through this double-pole breaker exceeds its designated rating—say, pulling 45 amps on a 40-amp breaker—the internal mechanism of the breaker heats up and trips, physically cutting off the electrical connection.

Sometimes, the issue isn't inside the electrical panel itself but rather on the control side of your air conditioner. For example, knowing the signs your Silverdale WA AC circuit board is failing can help you determine if a fried control board is sending erratic voltage signals that trigger electrical faults.

Additionally, if your home utilizes Arc Fault Circuit Interrupter (AFCI) breakers, you might experience different types of electrical interruptions. You can learn more about how these highly sensitive safety devices operate by reading about Why Your AFCI Breaker Keeps Tripping.

Overload vs. Short Circuit vs. Ground Fault in AC Systems

When your AC trips the breaker, the root cause generally falls into one of three distinct electrical categories: an overload, a short circuit, or a ground fault. Understanding these differences is crucial for diagnosing the issue safely.

1. Electrical Overload

An overload is the most common and least dangerous reason a breaker trips. It occurs when the air conditioner is physically working too hard, drawing slightly more electrical current than the breaker is designed to handle over a sustained period. For example, if a worn blower fan or a clogged filter causes the system to draw 42 amps on a 40-amp circuit, the breaker will slowly warm up and trip after a few minutes of operation.

2. Short Circuit

A short circuit is a sudden, severe electrical fault. It happens when a "hot" wire carrying electricity comes into direct contact with a "neutral" wire. This bypasses the normal resistance of the appliance, creating an almost instantaneous, massive spike in electrical current. If your AC has a short circuit, the breaker will trip the exact millisecond the compressor or fan tries to kick on.

3. Ground Fault

A ground fault is a specific type of short circuit. It occurs when a hot wire comes into contact with a grounded portion of the system, such as the metal chassis of the outdoor condenser, a copper refrigerant pipe, or the ground wire itself. In air conditioning systems, this is most frequently caused by a motor short or a "grounded compressor," where the internal copper windings of the motor break down and touch the metal casing. This is a severe safety hazard that can cause electrical shocks if anyone touches the outdoor unit.

Here is a quick reference table to help you compare these three issues:

If your breaker has tripped and you are trying to figure out why your system is completely unresponsive, you can explore these AC won't turn on solutions to rule out minor control issues. For a broader look at general household electrical issues, you may also find this guide on Circuit Breaker Keeps Tripping Causes & Fixes helpful.

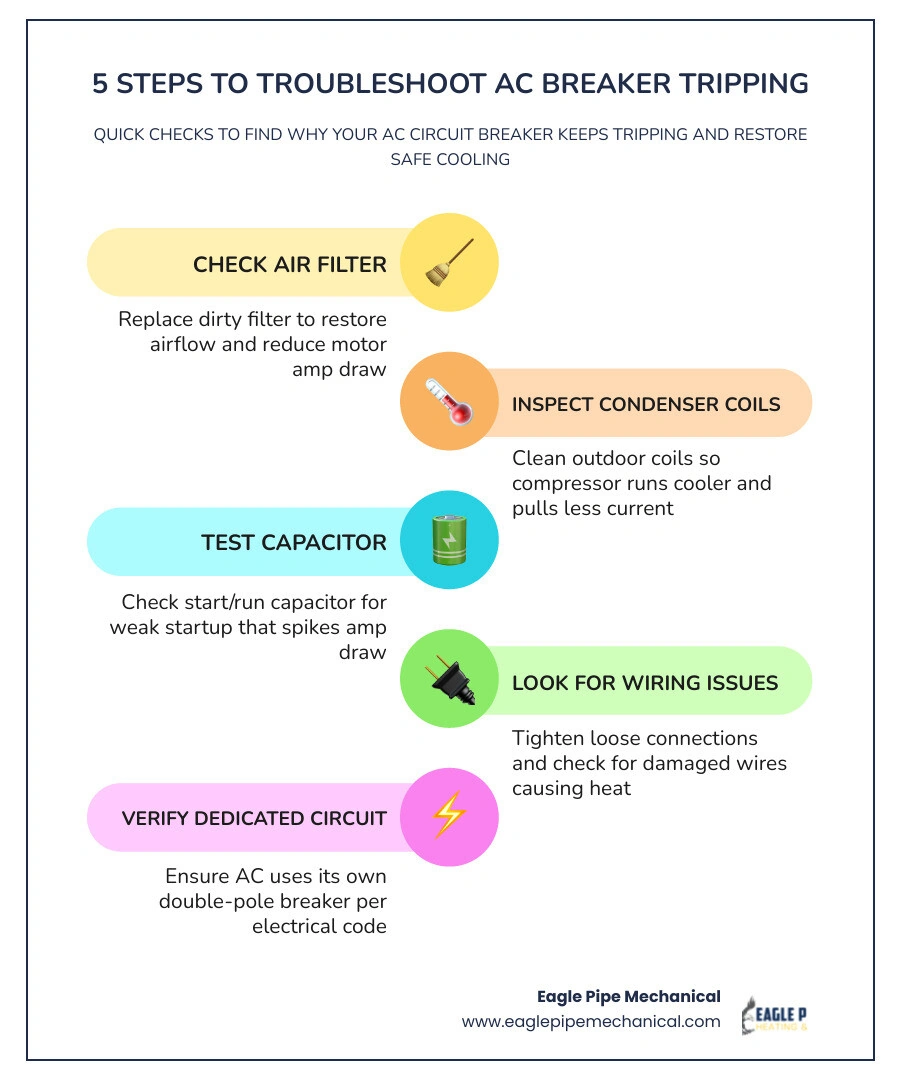

5 Simple Steps to Troubleshoot Your Tripping AC Breaker

Before you assume you need a brand-new air conditioning system, there are a few safe, basic troubleshooting steps you can perform at home.

Follow this step-by-step protocol to isolate the issue:

Step 1: Shut Off the System at the Thermostat

Never attempt to reset a tripped breaker while the thermostat is actively calling for cooling. Go to your thermostat and switch the system to the "OFF" position. This prevents the air conditioner from immediately trying to draw a heavy startup current the moment you restore power, which can damage the breaker contacts.

Step 2: Inspect and Replace the Air Filter

Locate your indoor return air filter. If it is gray, choked with dust, or has been in place for more than 90 days, replace it immediately. A clogged filter severely limits airflow, forcing your blower motor to work double-time and spike its electrical consumption.

Step 3: Check the Outdoor Condenser Unit

Walk outside and look at your condenser. Ensure there is at least two feet of clear space around the entire unit. Clear away any overgrown grass, weeds, fallen leaves, or debris. If the outdoor coils are coated in dirt, pollen, or lawn clippings, they won't be able to release heat efficiently, putting immense strain on the compressor.

Step 4: Verify Indoor Supply and Return Vents Are Open

Make sure that at least 80% of the supply registers and return grates throughout your home are open and unblocked by furniture, drapes, or rugs. Closing too many vents increases the static pressure inside your ductwork, overloading the blower motor.

Step 5: Apply the "One-Reset Rule"

Go to your electrical panel. Locate the AC breaker (it should be a double-pole switch labeled "AC" or "HP"). Flip it completely to the "OFF" position to reset the internal mechanism, then flip it back to "ON." Go back to your thermostat, turn it to "COOL," and lower the temperature.

If the breaker trips again immediately or within a few minutes, do not reset it a second time. Repeatedly resetting a tripping breaker can permanently degrade the breaker itself, melt wire insulation inside your walls, and cause an electrical fire. If you notice a burning smell, see sparks, or hear a loud humming noise, refer to these signs you need immediate AC repair.

Airflow Restrictions: AC Circuit Breaker Keeps Tripping What It Means

It surprises many homeowners to learn that a mechanical issue like restricted airflow can directly cause an electrical failure like a tripped breaker.

When your air filter is completely clogged, the indoor blower motor has to fight against high static pressure to circulate air. To overcome this resistance, the motor draws more and more electrical current. Eventually, this excess amp draw exceeds the safety threshold of the circuit, tripping the breaker.

The same principle applies to the outdoor unit. Your AC doesn't actually "create" cold air; it absorbs heat from inside your home and dumps it outside. This heat transfer occurs at the outdoor condenser coils. If those coils are caked in dirt, dust, or salt air deposits, they act as an insulating blanket.

Because the heat cannot escape, the temperature and pressure of the refrigerant inside the system skyrocket. The compressor must work significantly harder to pump this high-pressure refrigerant. As the compressor strains, its amp draw climbs well past its normal running limits until the breaker trips. If you suspect your indoor fan or outdoor fan is the culprit, you can learn more about fixing AC fan motor performance issues.

Electrical Faults: AC Circuit Breaker Keeps Tripping What It Means

If your airflow is perfectly fine but the breaker trips the instant the system tries to start, you are likely dealing with an electrical component failure.

One of the most common electrical culprits is a failing capacitor. The run capacitor acts like a temporary battery, delivering a quick boost of electrical energy to help the compressor and fan motors start up and run smoothly. Over time, heat, age, and electrical surges degrade capacitors. When a capacitor weakens, the compressor struggles to spin up, drawing massive amounts of electricity—often referred to as Locked Rotor Amps (LRA). In some cases, we have measured startup surges of over 100 amps on a system rated for a 40-amp breaker because of a dead capacitor.

An even more serious issue is a grounded compressor. This occurs when the electrical windings inside the compressor motor break down, allowing raw electricity to bypass the motor and flow directly into the metal frame of the unit. This creates an immediate, high-amperage ground fault that trips the breaker instantly to prevent electrocution or fire.

Finally, loose or corroded wiring can cause a trip. The constant vibration of the outdoor unit can loosen terminal connections over time. Loose connections create high electrical resistance, which generates intense heat. This heat can trick the thermal sensor inside your circuit breaker into thinking the circuit is overloaded, causing it to trip. If you hear unusual noises from your outdoor unit before it shuts down, you can read more about AC clicking sounds reasons to help identify the problem.

Frequently Asked Questions About Tripping AC Breakers

Why does my AC breaker trip only when it is extremely hot outside?

When the outdoor temperature climbs, your air conditioner has to work significantly harder to reject heat from your home. This increased thermal load naturally raises the operating pressure of the refrigerant, forcing the compressor to draw more electrical current.

If you have a component that is already weakened—such as a degrading capacitor, slightly dirty coils, or a minor refrigerant restriction—the extra strain of a hot afternoon will push the amp draw over the limit, causing the breaker to trip. Additionally, if your system is low on refrigerant, it will run continuously without stopping. This extended runtime can overheat the compressor motor, triggering its internal thermal overload switch or tripping the main breaker. If you suspect your system is low on refrigerant, look out for these AC refrigerant leak signs.

Is it dangerous to keep resetting a tripped AC breaker?

Yes, it is highly dangerous. A circuit breaker is a safety device designed to prevent electrical fires. When a breaker trips, it is warning you that there is a hazardous electrical condition.

If you ignore this warning and repeatedly force the breaker back on, the excessive electrical current will generate extreme heat inside your walls and electrical panel. This heat can melt the plastic insulation protecting your copper wiring, leading to arc faults and devastating house fires. It can also permanently ruin your expensive AC compressor.

Does my central air conditioner need a dedicated circuit?

Yes. According to the National Electrical Code (NEC), fixed appliances like central air conditioners must be installed on a dedicated circuit that is specifically sized for their electrical load. A central AC unit should never share a circuit with other household appliances, lights, or outlets.

Sharing a circuit will almost guarantee frequent overloads. If your home has an older electrical panel that cannot support a dedicated 240V double-pole breaker, you may need an electrical panel upgrade to safely run a modern, energy-efficient air conditioning system.

Conclusion

A tripping AC breaker is a clear warning sign that your cooling system is under severe mechanical or electrical stress. While checking your air filter and clearing outdoor debris are great first steps, complex electrical diagnostics should always be left to the professionals.
